Description and specification
Please order the thyristor power regulator according to the following specification

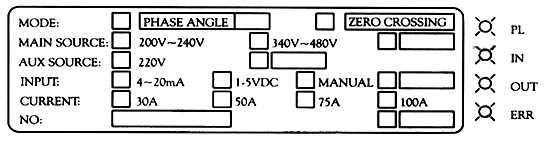

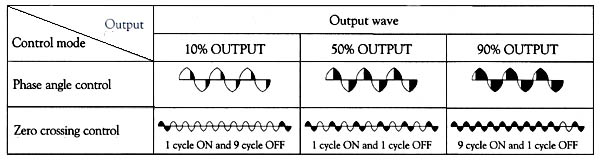

MODE:

• PHASE ANGLE (Phase angle control mode, suitable for constant resistence load)
• PHASE ANGLE TF(Phase angle control mode, suitable for teansformer resistence load)
• PHASE ANGLE TFCT(Phase angle control mode, suitable for constant current control load)
• ZERO CROSSING(Zero crossing control mode, suitable for constant resistence load)

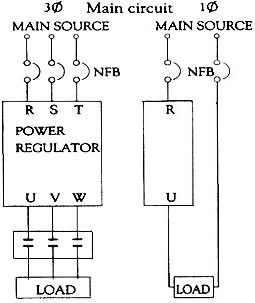

MAIN SOURCE: Main power source (Available within the range)
AUX SOURCE: Aux,source (For the type phase TF & TFCT,the Aux soruce must be the same as power source)

INPUT:Input signal
CURRENT:Rated current
NO:SERIES No.

Adjustable functions

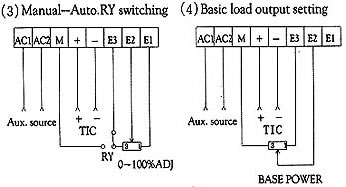

• BIAS ..................... Output adjustment of basic voltage.(6mA)
• MAX .................... Max output adjustment.(0~100%)

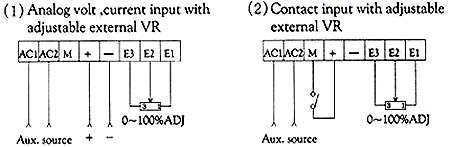

Selection of input signal

• 4~20mA, MANUAL.......................... Jump P1 and S1
• 2~10VDC, 0~12VDC, 1~5VDC........ Jump p1 and S2

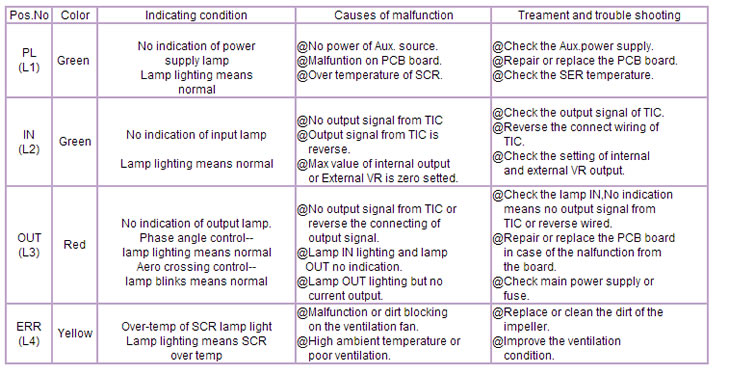

Description of indicating lamp

• PL(L1):Indication of power supply (Lighting when Aux,power switched on)
• IN(L2):Indication of transfer signal from TIC (Lamp illuminating acc, to the output signal of TIC)
• OUT(L3):Output signal transfering (Lamp illuminating acc. to the output)
• ERR(L4): Malfunction indication (Lamp lighting in case of SCR over temp)
