EHK is keen to respond to the challenge of unusual or difficult infrared heating applications. We communicate closely with customers, often working with their drawings to analyse the problems and realise the most cost effective solutions to design and manufacture special products to meet the objective of the project.

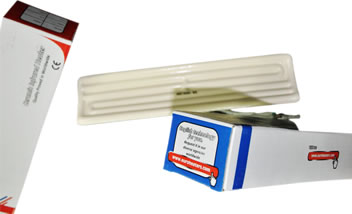

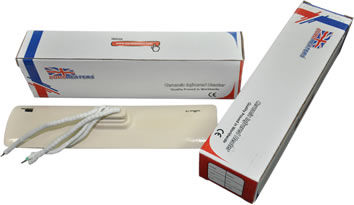

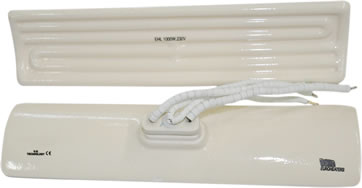

Ceramic resistance is an efficient and robust resistance which provides long-wave infrared radiation, ceramic elements operate in the temperature range 300 ° C to 700 ° C yielding IR wavelengths in the range of 2 to 10 microns.
- Wire Resistive Iron-Chromium-Aluminium
- Voltage resistance: 230 Volts standard (other voltages available on request)
- Wavelength Range: 2-10 microns
- Average length: 5.000 to 10.000 hours
- The recommended radiation distance ranges from 100 mm to 200 mm
- Supplied with 100mm ceramic pearly
|
