| Coil Heaters |
Micro Tubular Coil Heaters are manufactured in two standard diameters, 1.5 mm and1.8mm (0.059” & 0.07”). These heaters are swaged and compacted to these diameters and fitted into special clamps to tighten over circular parts for heating purpose.

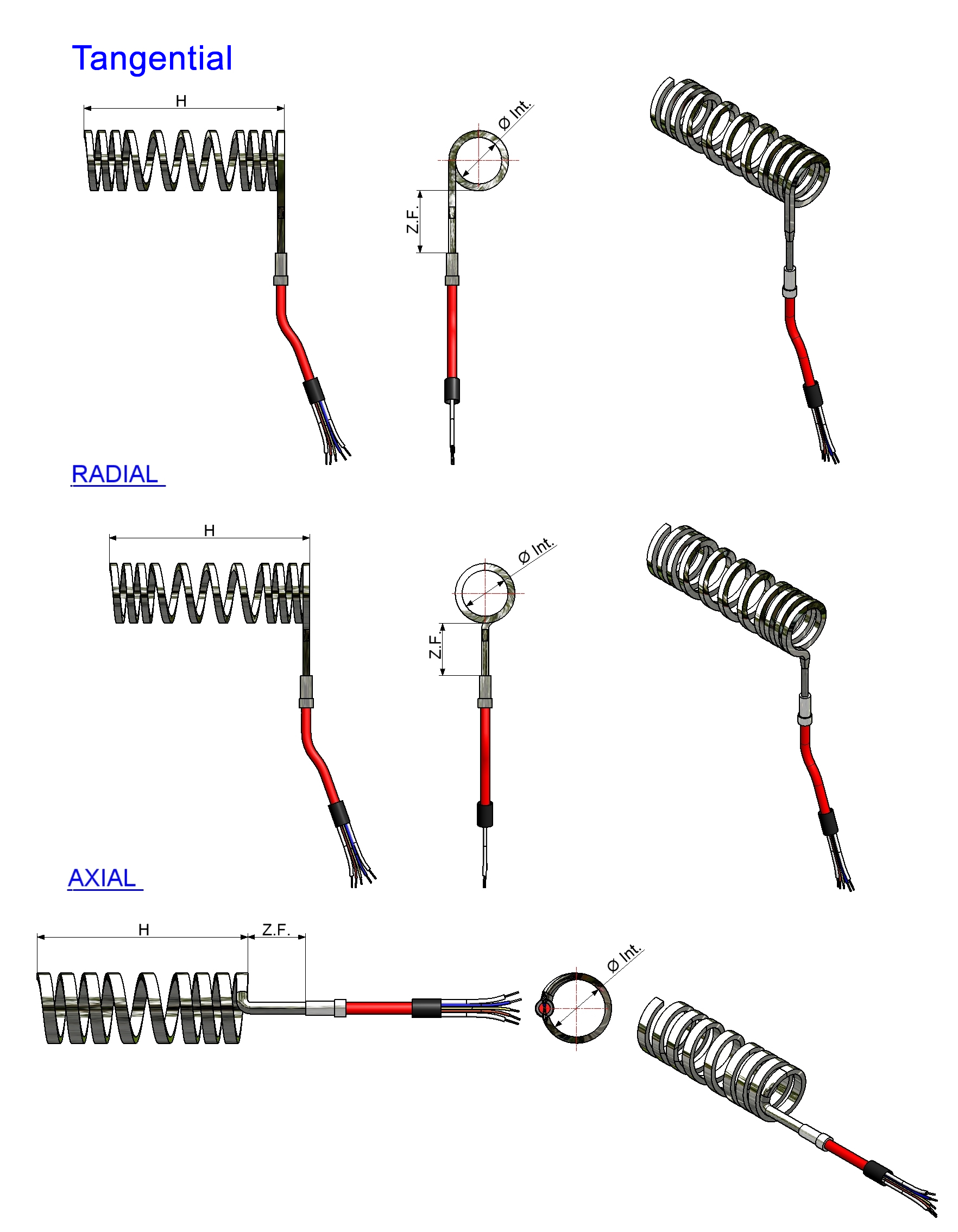

The 1.8mm diameter Micro Tubular Heater is formed into a coil of predefined dimension and equipped with a special cover for easy fittment. This special cover called Axial clamp allows front end loading and adjustability. Such easy handling saves hours of downtime in case of heater failure in a Multi - Cavity mold. These heaters are offered with staggered. |
| |
Resistances microtubule or Coiler type are small diameter resistance, but of high calorific value for electrical heating is needed in very small spaces and small. The heater wire is of the highest quality market with a thin outer layer and covered by a sheath of stainless steel, prepared for a process of compaction is achieved with longer life and become very hot.
Resistance can take shape as required, thus conforming to the basic needs of each client. Solid surfaces can be heated well be straight (blade or folding), in a helical (pipes, injection nozzles) or other geometric shapes as needed.
Also compared to other companies, we can manufacture resistors as for our customers according to their technical indications and quantities you require from a single unit until they are required. |
1,3 x 2,3  |
2,2 x 4,2 |
| |
3,0 x 3,0 |
1,8 x 3,2  |
| |
3,3 |
4,6 x 8,6 |
|
| |
-
| Benchmark measurement chart |
-
| |
| Total length [mm] |
Caloric length [mm] |
Power [W] |
| 290 |
250 |
195 |
| 320 |
280 |
215 |
| 375 |
335 |
240 |
| 425 |
385 |
295 |
| 500 |
460 |
350 |
| 560 |
520 |
400 |
| 640 |
600 |
460 |
| 800 |
760 |
610 |
| 940 |
900 |
690 |
| 1150 |
1110 |
850 |
| 1350 |
1310 |
950 |
| (*)Reference values, we manufacture to your specifications. |
|
| |
|
|
|
